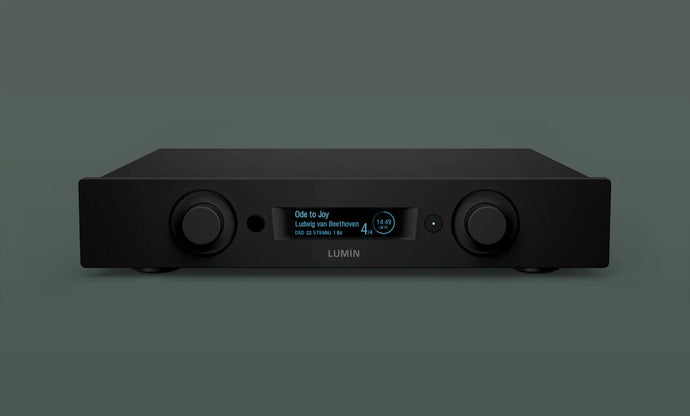

Net als zijn grotere broer is de P1 Mini ontworpen om te worden gebruikt als streamer, DAC, voorversterker of alle drie! Met 5 analoge en digitale ingangen, een lineaire voeding en vele andere componenten afkomstig van vlaggenschipspelers, verpakt de LUMIN P1 Mini ongelooflijke veelzijdigheid en waarde in zijn nieuwe slanke chassis.
Specificaties:
P1 MINI SPECIFICATION HIGHLIGHTS
-
NETWORK PLAYBACK:
- Up to DSD512
- Up to 384 kHz, 16–32-bit, Stereo
- MQA Full Decoding
-
UPSAMPLING RATES & BIT DEPTHS:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files
-
DIGITAL INPUT:
-
USB:
- USB Audio Class 2 Compatible
- WINDOWS 10 (Release 1703 or above) / Mac OSX or above
- DoP 128 support
- PCM 44.1–384 kHz, 16 / 32-bit, Stereo
-
OPTICAL/SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:
- PCM 2.0 Audio support
- 4K Video Passthrough
-
-
DIGITAL OUTPUT:
-
USB:
- Native DSD512 support
- PCM 44.1–384 kHz, 16–32-bit, Stereo
-
BNC SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:(HDMI PASSTHROUGH AND ARC SUPPORT)
- PCM 2.0 Audio support
- 4K Video Passthrough
- ARC (Audio Return Channel) support
-
-
ANALOGUE INPUT:
- RCA Stereo x1
-
ANALOG OUTPUT:
- Dual ESS SABRE32 ES9028Pro DAC chips
- Fully balanced layout with high-quality components
- Femto Clock System with precision FPGA distribution
-
OPTICAL NETWORK:
- Industry-standard Gigabit SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
POWER SUPPLY:
- Internal toroidal linear
- Low-noise linear regulator
-
PHYSICAL:
-
FINISH:
- Black anodised aluminium
- Raw anodised aluminium
LUMIN (SOLID ALUMINIUM CHASSIS):
- 400mm (W), 314mm (D), 77mm (H), 7kg
-
SPECIFICATION FOR ALL CURRENT-GEN LUMIN STREAMERS
-
STREAMING PROTOCOL:
- UPnP AV protocol with audio streaming extension (OpenHome)
- Roon Ready
- TIDAL Connect
- Spotify Connect
- Flac lossless Radio stations
- AirPlay-compatible
- Gapless Playback
- On-Device Playlist
-
APP FEATURES:
- Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
- Tidal MAX and MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including Tidal and Qobuz)
-
SUPPORTED AUDIO FILE FORMATS:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3
- MQ
