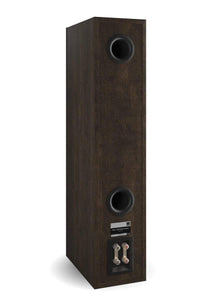

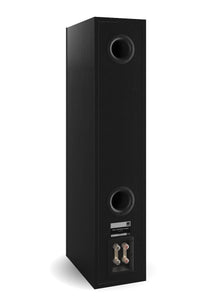

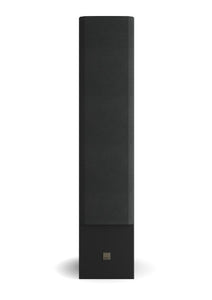

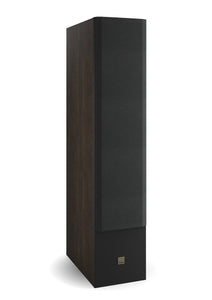

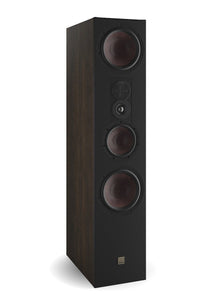

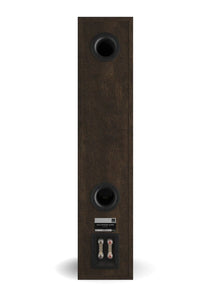

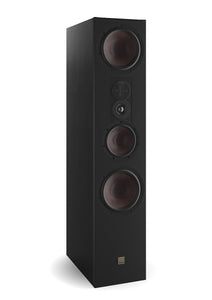

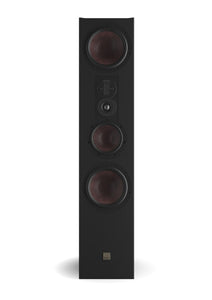

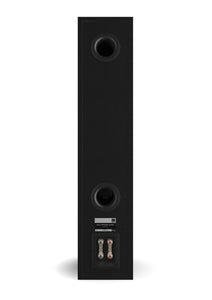

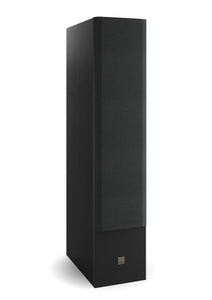

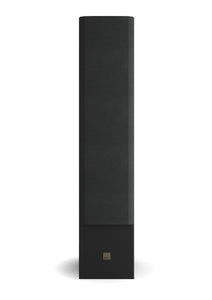

The OPTICON 8 MK2 is the pinnacle of the range.
De grootschalige, vloerstaande OPTICON 8 MK2 is de krachtpatser van de nieuwe OPTICON MK2-familie - het enige driewegsysteem in de serie. De luidspreker combineert een enorme lage frequentiebandbreedte, volumepotentieel en dynamische nauwkeurigheid met het buitengewone detail en de helderheid van de speciale midrange-driver. De OPTICON 8 MK2 biedt een uitgebreid laagfrequent profiel dat geschikt is voor installatie in grote luisterruimtes met meer afgelegen kamergrenzen.
HAND-ASSEMBLED
The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.
DALI DRIVERS
All elements of the DALI drivers are designed, produced and manufactured in-house in DALI.
DALI MDF CABINETS
Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl.
SMC-TECHNOLOGY
In the OPTICON woofer magnet motor system the pole piece is purely constructed of SMC. SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides.
DALI OPTICON 8 SPECS
| Frequency Range (+/-3 dB) [Hz] | 38 - 30,000 |
| Sensitivity (2,83 V/1 m) [dB] | 88.5 |
| Nominal Impedance [ohms] | 4 |
| Maximum SPL [dB] | 112 |
| Recommended Amplifier Power [W] | 40 - 300 |
| Crossover Frequency [Hz] | 380 / 2,200 / 14,000 |
| Crossover Principle | 3 + ½-way |
| Hybrid tweeter module, Super high freq. driver, Quantity | 1 x 17 x 45 mm |
| Hybrid tweeter module, Super high freq. driver, Diaphragm type | Ribbon |
| Hybrid tweeter module, High frequency driver, Quantity | 1 x 29 mm |
| Hybrid tweeter module, High frequency driver Diaphragm type | Soft Textile Dome |
| Midrange driver, Quantity | 1 x 6 1/2" |
| Midrange driver, Diaphragm type | Wood Fibre Cone |
| Low frequency driver, Quantity | 2 x 8" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 29.5 |
| Connection Input | Bi-Wiring Bi-Amping (INT) |
| Magnetic Shielding | No |
| Recommended Placement | Floor |
| Recommended Distance From Wall [cm] | 30 - 150 |
| Dimensions With Base (HxWxD) [mm] | 1141 x 241 x 450 |
| Accessories Included | Manual Rubber Feet Spikes M8 Assembly Tools |
| Weight [kg] | 34.0 |
